KD600 Heavy-Duty Vector Control AC Variable Frequ | RFQ Sourcing Details
Motors And Drives · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Quote on requestProduct specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Motors And Drives. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
The KD600 is a heavy-duty AC variable frequency drive designed for applications requiring adjustable motor speed, torque control, tension control and fast response. The documented control options are V/Hz, SVC1, SVC2 and VC.
The drive is described as suitable for controlling asynchronous motors and permanent-magnet synchronous motors. Documented power classes include 0.4–75 kW for single-phase 220–240 V, 0.4–75 kW for three-phase 220–240 V, 0.75–1132 kW for three-phase 380–480 V and 30–800 kW for three-phase 690–750 V.
Available ratings and physical dimensions vary by model. The supplied model table includes individual input-current, output-current, enclosure-size, mounting-size and mounting-aperture data for selected single-phase 220 V and three-phase 380 V units.
The drive supports control of one of two motors selected through a programmable terminal or parameter.
Other documented features include cycle-by-cycle current limiting, online autotuning, multiple frequency references, warning functions, parameter copying, PC-based monitoring software and a hot-pluggable detachable control panel. Factory-installed and later hot-plugged options are described as available.
The stated SVC1/SVC2 torque-response time is as short as 10 ms. Operation at an ambient temperature of 50°C without derating is also stated. General-use examples listed for the series include water pumps, ventilation fans, packaging machines, labeling machines and conveyor belts.
Elevator, textile, constant-torque and general-purpose functions are also identified, but buyers should verify the exact firmware, option package and model required for their machinery.
Procurement note: the source contains differing headline and detailed power ranges, and it presents both three-year and 24-month warranty statements.
Before ordering, confirm the exact KD600 model code, input phase and voltage, motor type, rated current, overload duty, enclosure dimensions, control mode, required I/O or communication options, environmental conditions and the warranty terms written into the quotation or contract.
KD600 | Applications and Buyer Notes
KD600 is organized as a sourcing-ready Motors And Drives reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time questions
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Motors and DrivesBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Series
- KD600Based on visible page data; confirm exact value in the RFQ.
- Packaging
- Cartons and wooden boxBased on visible page data; confirm exact value in the RFQ.
- Main circuit
- Voltage-source AC-DC-AC variable-frequency driveBased on visible page data; confirm exact value in the RFQ.
- Product type
- Low-voltage AC variable frequency driveBased on visible page data; confirm exact value in the RFQ.
- Control modes
- V/Hz, SVC1, SVC2 and VCBased on visible page data; confirm exact value in the RFQ.
- Control panel
- Hot-pluggable and detachableBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Procurement sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 12v 24v Permanent Magnet Worm Gear Dc Motor 10 300 RpmThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Motors And Drives categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Bearings And Linear Motion categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Couplings Chains And Belts categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Gearboxes And Reducers categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path CompanyThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Gearbox Manufacturers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Industrial Motor Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 15 Kw 20 Hp Three Phase Squirrel Cage Asynchronous Ac MotorThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Linear Motion Parts Exporters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 15 Kw Permanent Magnet Synchronous Motor 380 440 V Vfd DriveThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 16 42 Mm Brushless Dc Planetary Gear Motors With Custom 24 V And Encoder OptionsThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.

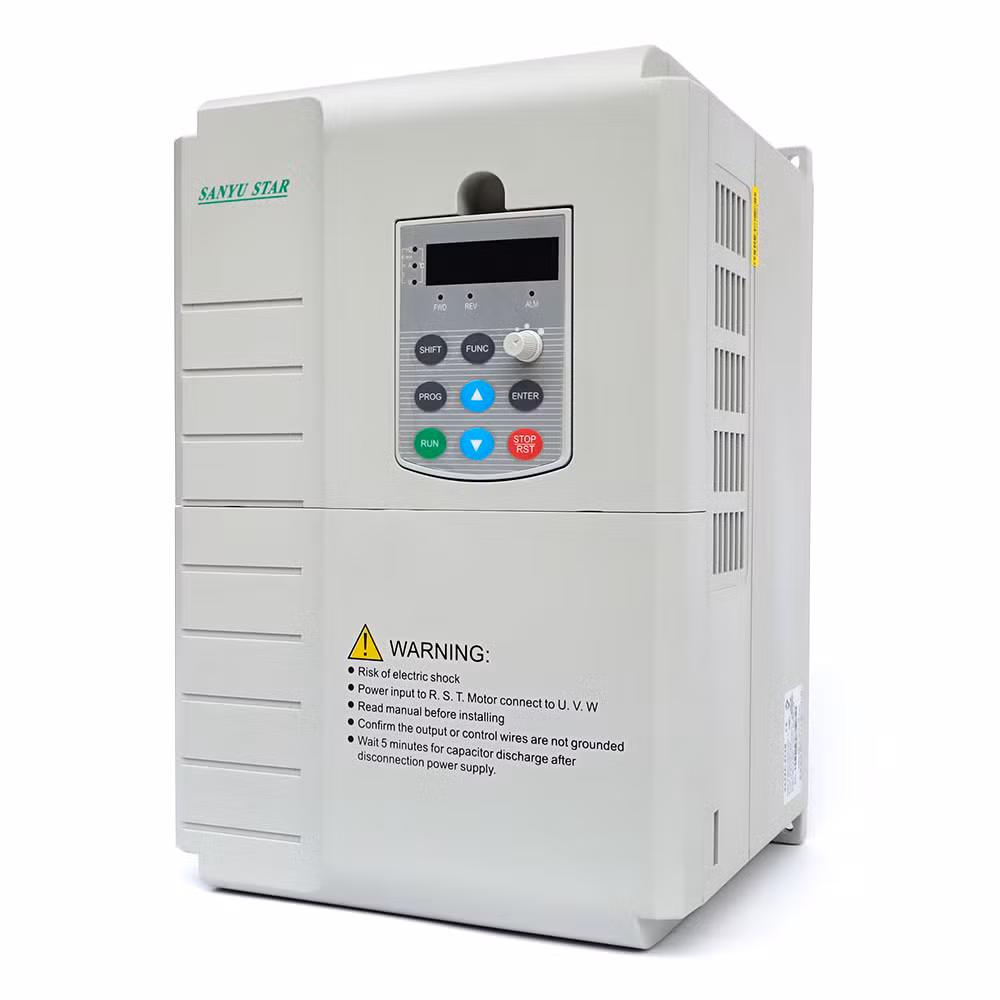

Sanyu SY5000 Vector Control Variable Frequency AC Motor DriveRequest Quote
