86 mm 3-Phase BLDC Gear Motor for Sliding-Door Sy | RFQ Sourcing Details
Dc Gear Motors · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Dc Gear Motors. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
This 86 mm brushless DC motor platform is offered for geared motion assemblies, including sliding-door systems. It can be configured with a planetary or worm gearbox and may be paired with a brake, encoder and controller.
The motor is three-phase, and the listed product family supports adjustable-speed operation and customized rated torque, current and speed. The documented JK86BLS 48 V motor series includes five models with a rated speed of 3,000 rpm.
Across these models, rated torque ranges from 0.35 to 2.1 N·m, rated power from 110 to 660 W and peak torque from 1.05 to 6.3 N·m. Motor body length and weight vary by model. These figures apply specifically to the listed 48 V JK86BLS variants and should not be assumed for every customized assembly.
The motor data identifies eight poles, Class B insulation, an IP30 motor protection rating and a sensor. Listed operating conditions are −15 to +50 °C, humidity up to 85% RH without condensation and altitude up to 1,000 m.
The stated working environment excludes direct sunlight, corrosive or flammable gas, oil mist and dust. Gear reduction options depend on the selected gearbox.
One documented 86 mm gearbox family offers one-, two- and three-stage arrangements, ratios from 3:1 through 1,000:1, maximum input speed of 6,000 rpm, and efficiencies of 96%, 94% and 90% respectively.
Its listed maximum radial load is 550 N, maximum shaft axial load is 500 N, noise is no more than 60 dB, and protection level is IP65. A separate planetary gearbox table lists ratios from 3.55:1 to 138:1, rated tolerance torque up to 80 N·m depending on ratio, and motor input speed below 4,000 rpm.
Values from the separate gearbox tables are configuration-specific and should not be combined without confirmation.
Before purchasing, confirm the exact motor model, supply voltage, continuous and peak load, required output speed, gearbox type and ratio, duty cycle, mounting interface, shaft geometry and permitted backlash.
Buyers should also verify whether the brake, encoder and controller are included, and obtain the corresponding drawings, wiring details and environmental rating for the complete assembled unit.
Certification applicability, controller compatibility and sliding-door integration requirements should be checked for the final configuration rather than inferred from the product family.
86 | Applications and Buyer Notes
86 is organized as a sourcing-ready Dc Gear Motors reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time questions befor
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- DC Gear MotorsBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Gearbox options
- Planetary or worm gearboxBased on visible page data; confirm exact value in the RFQ.
- Insulation class
- Class BBased on visible page data; confirm exact value in the RFQ.
- Phases and poles
- 3 phases and 8 poles for the listed JK86BLS seriesBased on visible page data; confirm exact value in the RFQ.
- Listed 48 V models
- JK86BLS58, JK86BLS71, JK86BLS84, JK86BLS98 and JK86BLS125Based on visible page data; confirm exact value in the RFQ.
- Motor model family
- JK86BLSBased on visible page data; confirm exact value in the RFQ.
- JK86BLS peak torque
- 1.05-6.3 N-m, depending on modelBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 220v 380v Three Phase 100w To 3 7kw Ac Induction Motor 60hz Gear Motor Rated Power 2 2kwThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Gearbox Manufacturers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Industrial Motor Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Linear Motion Parts Exporters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Bearings And Linear Motion categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Couplings Chains And Belts categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Gearboxes And Reducers categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Motors And Drives categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path AboutThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path ApplicationThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path SolutionThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path CategoriesThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path RegionThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
42 mm 12V/24V Brushless DC Planetary Gear Motor with Custom Speed and Output ShaftRequest Quote
Configurable Brushed or Brushless DC Gear Motor with Planetary or Worm GearboxRequest Quote
High-Efficiency Electric Brushless DC Planetary Gear Motor for Solar Tracker - High Speed BLDC and HRequest Quote

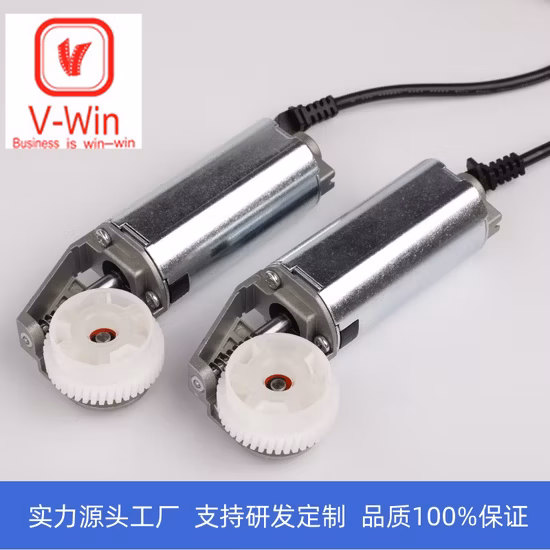

Versatile Industrial DC Worm Gear Motor for Standing Desk Height Adjustable - Low Noise Motor and HiRequest QuoteVersatile Industrial DC Worm Gear Motor for Standing Desk Height Adjustable - Low Noise Motor and HiRequest Quote
